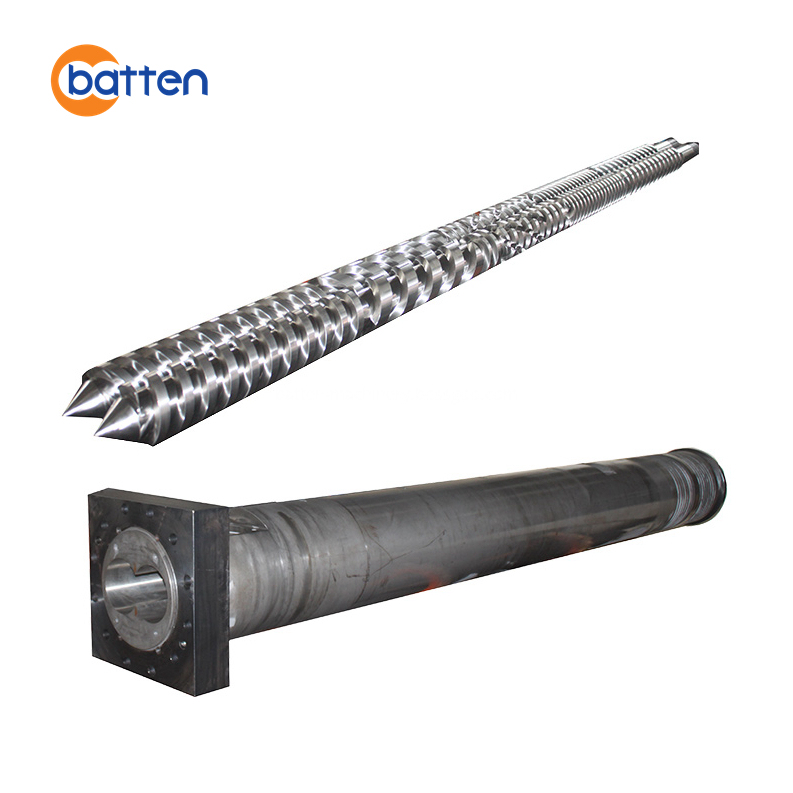

Paralel Twin Screw Barrel For Pvc Compound

  • Paralel Twin Screw Barrel For Pvc Compound
  • Paralel Twin Screw Barrel For Pvc Compound
  • Paralel Twin Screw Barrel For Pvc Compound
  • Paralel Twin Screw Barrel For Pvc Compound

Paralel Twin Screw Barrel For Pvc Compound

    Packaging: Plywood case
    Supply Ability: 300 Set/Sets per Year
    Port: Ningbo/Shanghai

Product Description

PVC profile(door&window)、WPC(PVC, PE)、PVC foam board、PVC pipe、PVC Compound etc.


PX- Φ45/2 — Φ150/2 L/D=18~40
Products Description
Technical Specification
Parallel Twin Screw Barrel
1 set (1 pair of screws and 1 pc of barrel)
Design Details
I TYPE:inside is water/oil cooling system
II TYPE:outside is oil cooling system
I TYPE:outside is air cooling system
II TYPE:outside is copper pipe around cooling system

Stop ring+washers to adjust the space between screw and barrel
Technical Specification
Material:High quality 38CrMoAlA
Process:Advanced nitriding & bimetallic process
Hardness After Hardening & Tempering:HB280-320
Nitrided Hardness:HV900-1000
Nitrided Case Depth:0.45-0.8mm
Nitrided Brittleness:Less than Grade 2
Surface Roughness:Ra 0.4
Screw Straightness:0.015mm
Alloy Hardness:HRC 50-65
Alloy Depth:0.8-2.0mm
Batten - Machinery
- Devote on Screw barrel

Zhoushan Batten Machinery Technology Co., Ltd.

 Zhoushan Batten Machinery Technology Co.,Ltd is located in Zhoushan City, the largest manufacture base of Screw Barrel in China.

Batten is a professional manufacture and supplier of screw barrel for plastic machine! We offer a range of screw barrel for Extruder and Injection Machines, both China and Europe Brand. We can supply with screw barrel for Krauss Maffei, Battenfeld, AMUT, Weber machine etc. Since 2012,our export value is nearly $1 million and we has invested new factory in 2013 and our target is $2 million by the end of 2014.

We put quality first and our team devote ourselves to service for you. We have nearly 40 skilled workers and 3 technical engineers and 3 managers. Thanks to them, we can bring high quality and rapid reply to our customers abroad.

Batten advocates "Enjoy Life, Enjoy Work"! Batten people are very pleased to service for you!
